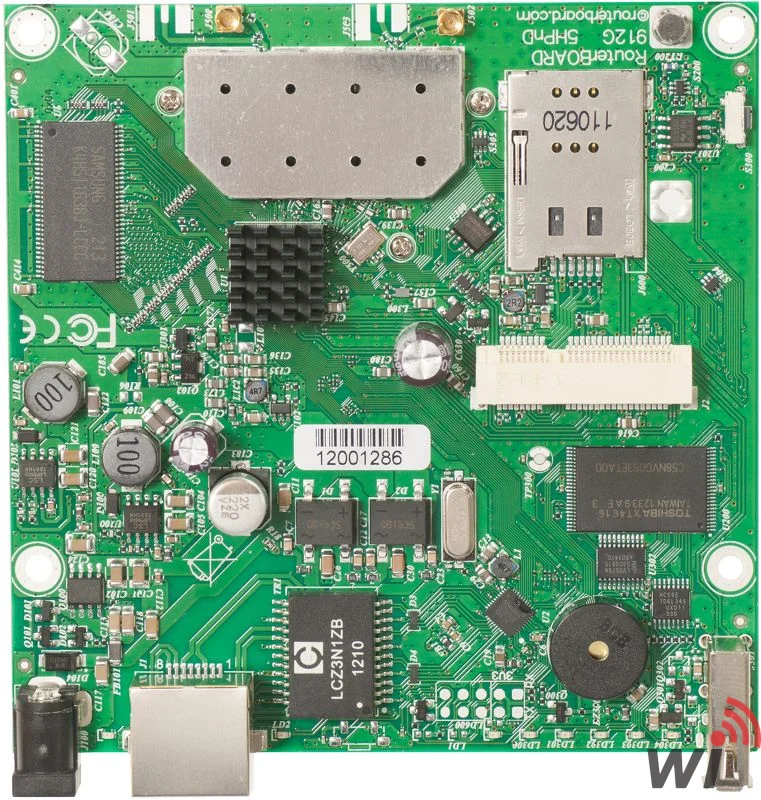

Mikrotik RB912UAG-5HPnD Board

• Mikrotik RB912G Yüksek Performans AP/Router 2x2 Mimo Teknolojisinde beklenen ürün .

• SMA Konnektör Bağlantısı

•

• Yağmur ve korozyon için koruma

• Çok yönlü bağlantıya uygun

•

• 5   Frekans desteği

• 1000mV çıkış gücü

•

• 16kV ESD ( Yıldırım Koruyucu )

•  Gigabit Ethernet portu sayesinde yüksek trafik imkanı

•

RB912UAG-5HPnD

The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.

The integrated wireless card is capable of up to 1000mW output power. It has built in 16kV ESD protection on both the Ethernet and the MMCX ports

Product specifications

Details
Product code	RB912UAG-5HPnD
CPU nominal frequency	600 MHz
CPU core count	1
Size of RAM	64 MB
10/100 Ethernet ports	0
10/100/1000 Ethernet ports	1
MiniPCI slots	0
MiniPCI-e slots	1
Wireless chip model	AR9342-BL1A
Wireless standards	802.11a/n
Number of USB ports	1
Memory Cards	No
Power Jack	Yes
802.3af support	No
PoE	8-30V DC
Voltage Monitor	Yes
PCB temperature monitor	Yes
CPU temperature monitor	No
Dimensions	105x105mm
Operating System	RouterOS
License level	L4
Current Monitor	No
TX power	30dBm
CPU	AR9342-BL1A
Max Power consumption	14W at 24v
SFP ports	0
USB slot type	USB type A
Number of chains	2
