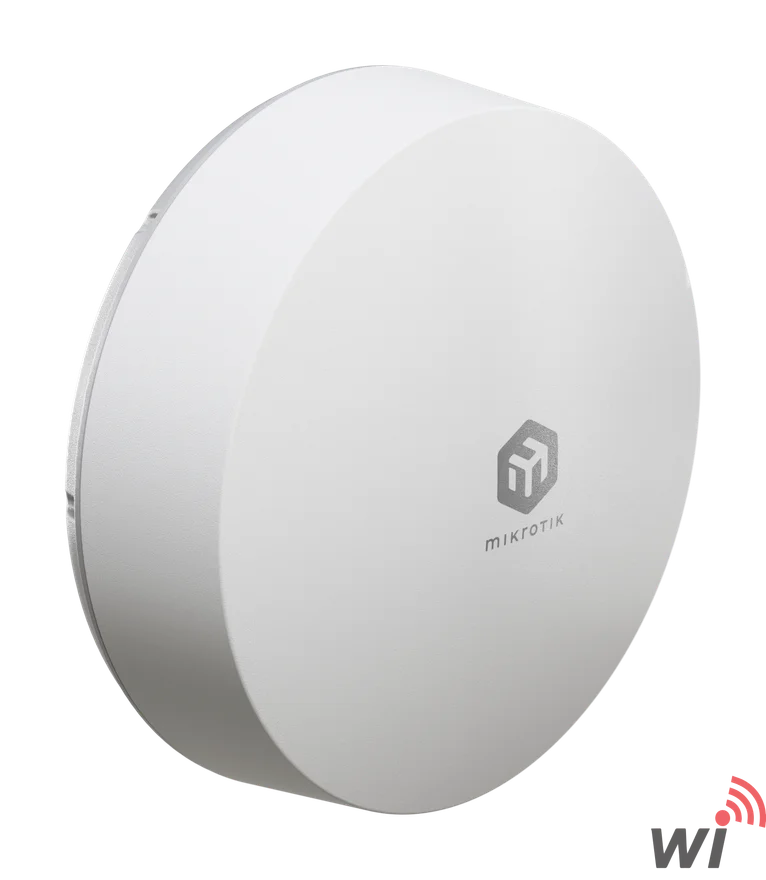

Mikrotik ATL 5G R16

Mikrotik ATLGM-RG520F-EU

The first external 5G device equipped with an internal eSIM, powerful directional antennas, and the latest technology product Release 16 modem, making it ideal for rural, urban, and IoT applications. Featuring Gigabit Ethernet, PoE input, and instant MikroTik connectivity from the box, it offers a smart and reliable choice for fast and flexible internet anywhere. IP66 certified.


TECHNICAL SPECIFICATIONS;

Architecture: ARM 64-bit
Processor: 88F3720
Number of processor cores: 2
Processor nominal frequency: 800 MHz
Number of processor threads: 2
RouterOS license: 3
Operating System: RouterOS v7
RAM size: 512 MB
Storage size: 32 MB
Storage type: FLASH
MTBF: Approximately 200,000 hours at 25C
Tested environmental temperature range: -40C to 70C

POWER;

Number of DC input ports: 1 (PoE-IN)
Maximum power consumption: 10 W
Maximum power consumption without add-ons: 10 W
PoE input: 802.3af/at
Cooling type: Passive
PoE input voltage: 12-56 V

MOBILE;

3G Category:
R8 (42.2 Mbps Download, 5.76 Mbps Upload)

3G Bands:
1 (2100 MHz)
5 (850 MHz)
8 (900 MHz)

4G LTE Category:
20 (2.0 Gbps Download, 200 Mbps Upload)

MIMO Download:
4x4

4G LTE FDD Bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)

4G LTE TDD Bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
42 (3500 MHz)
43 (3700 MHz)

5G NSA FDD Bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)

5G NSA TDD Bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)

5G SA FDD Bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)

5G SA TDD Bands:
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
75 (1500 MHz)
76 (1500 MHz)
77 (3700 MHz)
78 (3500 MHz)

TAC:
86945405

ETHERNET;

10/100/1000 Ethernet ports: 1
Number of 1G Ethernet ports with reverse PoE (PoE-in) capability: 1

PERIPHERALS;

Number of SIM card slots: 1 Modem (Micro SIM)
Number of M.2 card slots: 1
